BHS
ULTRA COMPACT 2.1 SELF-POWERED SYSTEM
OF THE SAME SERIES: BHS 800 BHS 1200 BHS 1800

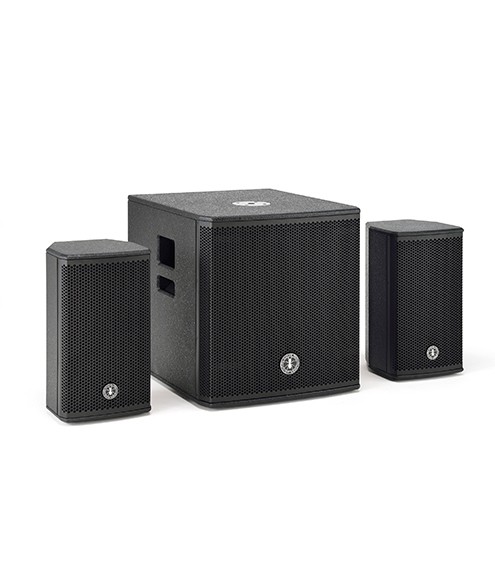

BHS 1800

ULTRA COMPACT 2.1 1800W SYSTEM

BHS 1800 (15” active subwoofer +2 full range 2-way speakers (1x”8”+1x1”HF)

The bass reflex subwoofer is the heart of the system, equipped with a Class D amplifier delivering power to the sub itself and to the 2 full-range satellites, providing a dynamic and faithful response wherever your performance space is.

The family is comprised of 3 models in order to meet a vaste range of requirements from home application to live stage gigs: 2 SpeakON cables to connect satellites to the sub are included in every model.

BHS systems have been designed for an intuitive and quick all-user set up, featuring 2x combo (XLR/6.35mm jack) inputs, 1x 3.5 mm mini-jack AUX INPUT to connect external devices and 2 L/R RCA TAPE Inputs. 2x Speakon OUT allow to connect left and right satellites while 2x XLR LINK Outputs allow to connect another speaker or a mixing console.

Controls allow users to modify main level, sub level, select Mono or Stereo Mode and reverse sub phase.

  • 2.1 powered pa system
  • 1 active sub + 2 full-range satellites
  • Powerful 3-way class d amplifier
  • Up to 126 db spl (for bhs 1800)
  • Dynamic and faithful response
  • Ultra-compact
  • Wide range of applications
  • From home to live stage
  • System type Ultra compact 2.1 Self-powered system
  • Subwoofer Bass reflex cabinet
    15” custom ferrite woofer
    2.5” VC
  • Satellite 2-way, full range
    LF: 8”
    HF: 1” horn loaded tweeter
  • Satellite dispersion (H° x V°) 80 x 60
  • Frequency response 42Hz-20kHz
  • Max SPL 126 dB
  • Peak Power 1800 W
  • Crossover 24dB/Oct @180Hz
  • I/O connectors 2 x COMBO (XLR-F + 2 x jack 6,35mm. 1/4”)
    AUX IN: 1 x mini- jack 3.5mm
    TAPE IN: RCA L/R
    LINE OUTPUT: 2 x XLR-M
    SATELLITE OUT: 2 x SPEAKON Pair button & Led
  • Controls Main Level, Sub level, 0°-180° phase reverse, STEREO/MONO switch, GND and ON/OFF switches
  • Cooling Fan
  • Subwoofer dimesions (W x H x D) 482 x 520 x 588 mm
  • Subwoofer weight 29 Kg
  • Satellite dimensions ( W x H x D ) 240 x 435 x 250 mm
  • Satellite weight 6.7 Kg
