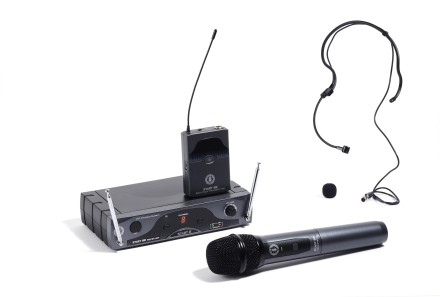

PLL DIVERSITY UHF WIRELESS SYSTEM

START 16 wireless systems operates in FREE 823-832 MHz or 863-865 MHz UHF Band, available in most European countries. This mean the system freely operates in many countries, avoiding any problem due to local regulations. The wireless system work on 16 different channels START 16R receivers adopt PLL Diversity technology, with two discrete antennas selecting at any moment the best radio signal. You may choose the operating frequency via buttons or via infrared technology, allowing an automatic transmitter/receiver synch for a quick and smooth set up. The microphone also features a low power consumption: up to 10 hour operation with standard AA batteries.

  • PLL diversity UHF wireless systems
  • Work on 16 channels
  • Work in a FREE UHF BAND (863-865 MHz) available in most European countries
  • Diversity technology selecting the best radio signal
  • Automatic receiver/transmitter syncronisation for a quick and easy set up
  • Low power consumption: up to 10 hour operation (with standard AA batteries)
  • Available in two versions: START 16 B6 version (823-832MHz) or Start 16 B7 version (863-865MHz)
ANT NETWORK
PREV
  • RECEIVER - START 16R
  • Type Diversity
  • Modulation FM
  • Frequency range 823-832MHz (B6) / 863-865MHz (B7)
  • Frequency response 60Hz - 15.000Hz (±3dB)
  • Transmission optimisation Pilot tone
  • THD <1%
  • Audio outputs Balanced XLR, unbalanced 6,35mm (1/4”) jack
  • Controls Power, channel up, channel down, ASC, volume Indicators Channel number, antenna A/B, 5 LEDs level
  • Dimensions (W x H x D) 212 x 44 x 115 mm
  • Weight 400 g
  • BELTPACK TRANSMITTER - START 16B
  • Modulation FM
  • Frequencies range 863-865MHz
  • Channels 6
  • Input DC powered Mini-XLR for PH-90
  • Headset Frequency response 60Hz - 15.000Hz (±3dB)
  • Output power 10mW
  • Controls Gain (3 steps), ON / Standby / OFF
  • Indicators Power and battery status
  • Power supply 2 AA 1.5 Volts batteries
  • Operating time >10h with alkaline batteries
  • Dimensions (W x H x D) 64 x 90 x 23 mm
  • Weight 80 g
  • HANDHELD TRANSMITTER - START 16M
  • Modulation FM
  • Frequencies range 863-865MHz
  • Channels 16
  • Type Dynamic
  • Polarity Cardioid
  • Frequency response 60Hz - 15.000Hz (±3dB)
  • Output power 10mW
  • Controls ON/OFF
  • Indicators Power and battery status
  • Power supply 2 AA 1.5 Volts batteries
  • Operating time >10h with alkaline batteries
  • Length 254 mm
  • Max diameter 52.5 mm
  • Weight 250 g
