Redfire
ACTIVE FULL RANGE SPEAKERS SERIES

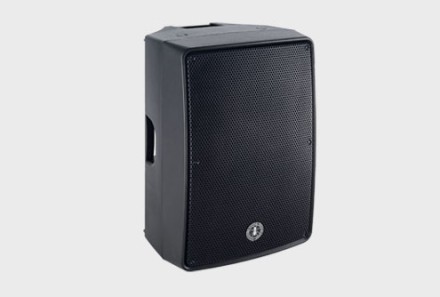

OF THE SAME SERIES: REDFIRE 10 REDFIRE 12 REDFIRE 15

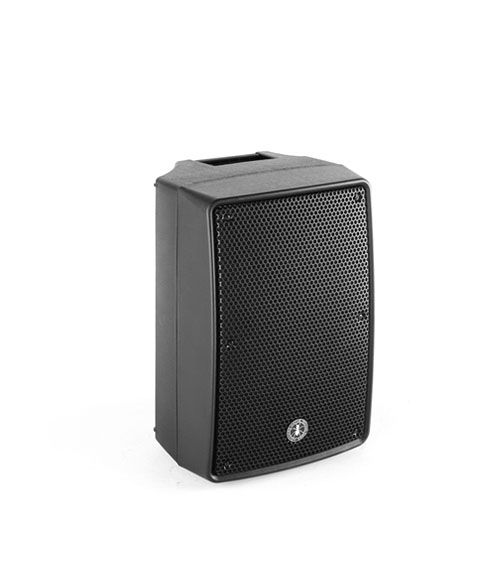

REDFIRE 10

10” 2-WAY ACTIVE SPEAKER

REDFIRE 10 ensures an extended frequency response with a clean and undistorted sound, even at high sound level pressures.
This 2-way active speaker is equipped with one 10" woofer and one 1" compression driver, and with its 500 W power amplifier, it reaches up to 120 dB SPL. Expressly designed to be immediately used in a very user friendly way, this series is the answer to the needs of those who want a sound system capable of providing excellent performance, versatility of connections and controls, and the best value for its product range.
The cabinet is made of sturdy and light polypropylene that makes REDFIRE perfect for frequent transports, while adapting to different kind of use, and its design facilitates fixed installation on walls.
On boards controls are essential and simple to be managed by all kind of users. The versatile design also allows to use REDFIRE as a stage monitor for musicians and Djs.

  • Plug & play full-range systems up to 120 dB SPL
  • Versatile, lightweight and portable design
  • Installation-ready with flying points
  • Unlimited range of applications both indoor and outdoor
  • System type 2-way vented box
  • LF 10” custom speaker - 1.5” V.C
  • HF 1” Compression driver - 1" V.C
  • Frequency response 60 Hz - 20 kHz
  • Max SPL 120 dB
  • Peak power 500 W
  • I/O Connectors MIC: Combo
    LINE IN: XLR-F + 6,35mm jack (1/4”)
    AUX IN: 3,5mm mini-jack
    LINE OUT: XLR-M
  • Controls MIC LEVEL, LINE/AUX LEVEL, LOW EQ, HIGH EQ, MASTER LEVEL
  • Suspension system 2 x M8 - under
  • Housing Polypropylene
  • Dimensions (WxHxD) 321 x 505 x 307 mm
  • Weight 12 Kg
