ANTMIX 6FX
ANTMIX 6FX
ANTMIX 6FX
ANTMIX 6FX

ANTMIX 6FX

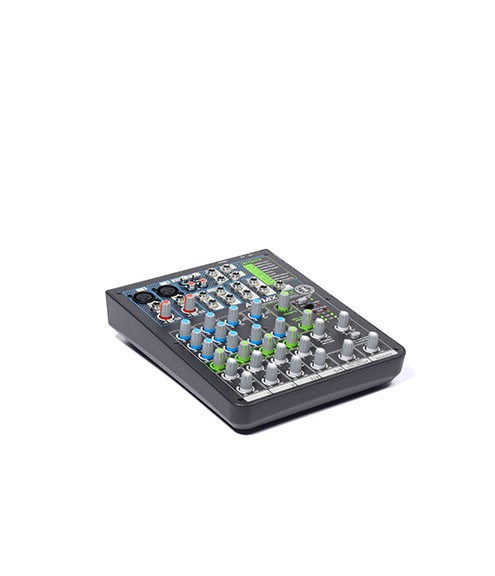

6-CHANNEL MIXING CONSOLE

Das ANTMIX 6FX Mischpult ist ein übersichtlicher 6-Kanal Mixer mit integriertem Effektgerät. Es überzeugt durch die sehr kompakte Bauform, einfache Bedienung und flexible Anschlussmöglichkeiten.

  • 6 Kanäle (2 x Mono Mic/Line: XLR/TRS Klinke; 2 x Stereo:
  • RCA/Klinke)
  • 48V Phantomspeisung auf Kanal 1 und 2
  • 16 Digitale effekte integriert (u.a. Hall, Delays, Plate, Chorus),
  • über Fußschalter (Klinke) Mutebar
  • Master-Sektion mit Mastermute, Peak LED, Output Level,
  • 2-TK Send und regelbarem 2-TK Return
  • Ausgänge: Main Mix (TRS Klinke), Control Room (TRS Klinke) und
  • Phones (6,3mm Stereoklinke), 2TK-Out (RCA)
  • 196 mm x 68 mm x 243 mm (Breite, Höhe, Tiefe), 1,18 Kg
ANT Netzwerk
NEXT
  • MONO mic/line inputs 2
  • Mic mono/stereo line inputs -
  • Stereo line input 2
  • Dimensions (W x H x D) 196 x 68 x 243 mm
  • Weight 1,18 Kg
  • MICROPONE IMPUT
  • Connector Balanced XLR
  • Impedance 1.8 kΩ
  • Frequency response 20~20kHz +/-1dB
  • Distortion (THD + N) <0,03% @ +0dB, 22~22 kHz, A weighted
  • Gain 0~55dB
  • Max input +15dB (balanced)
  • Low-cut 75Hz 12dB/oct.
  • Signal-to-noise ratio <-100 dBr A weighted
  • Phantom powering +48V
LINE INPUT
  • Connector Balanced 6,35mm (1/4”) - unbalanced RCA
  • Impedance 10 kΩ
  • Frequency response 20~20kHz +/-1dB
  • Distortion (THD + N) <0,03% @ +0dB, 22~22 kHz, A weighted
  • Gain +15dB~-35dB
  • Signal-to-noise ratio <-100 dBr weighted A
COMMON SPECIFICATION
  • Compressor (only for channels featuring this control) Gain: 0 ---> 9 dB | Soglia: 20 dB ---> 5 dB
  • Hum & noise < -80dB (A weighted, full bandwidth, 1 channel and MAIN @ 0dB, other chan- nels @ minimum)
  • Crosstalk < -80dB (A weighted, full bandwidth, 1 channel and MAIN @ 0dB, other chan- nels @ minimum)
EQUALIZATION AND 2-TRACK IN
  • Mono & mono/stereo channels +/-15 dB @12 kHz / +/-15 dB @2.5 kHz /+/-15 dB @80 Hz+/-15 dB @12 kHz +/-15 dB @2.5 kHz / +/-15 dB @80 Hz +/-15 dB @12 kHz / +/-15 dB @2.5 kHz+/- 15 dB @80 Hz
  • Stereo channels +/-15 dB @12 kHz / +/-15 dB @80 Hz+/-15 dB @12 kHz +/-15 dB @80 Hz+/-15 dB @12 kHz / +/-15 dB @80 Hz
MICROPHONE INPUT
  • Connector 2 x unbalanced RCA
  • Impedance 10 kΩ
  • Frequency response 20~20kHz +/-1dB
  • Distortion (THD + N) <0,03% @ +0dB, 22~22 kHz, A weighted
  • Gain OFF~+15dB
STEREO RETURNS
  • Connector 2 x balanced 6,35mm (1/4”)
  • Impedance 10 kΩ
  • Frequency response 20~20kHz +/-1dB
  • Distortion (THD + N) <0,03% @ +0dB, 22~22 kHz, A weighted
  • Gain OFF~+15dB
DSP
  • A/D - D/A converters 24 bit
  • Number of e ects 16 for 6FX – 100 for 8Fx and 12FX
  • Controls Presets rotary selector - 16 position (6FX) or 100 position (8FX & 12FX) DFX MUTE footswitch / DFX MUTE switch / DFX button (only 8FX & 12FX) Presets rotary selector - 16 position (6FX) or 100 position (8FX & 12FX) DFX MUTE footswitch / DFX MUTE switch / DFX button (only 8FX & 12FX)
OUTPUTS
  • MAIN MIX connectors 2 x TRS 6,35mm (1/4”) connector (XLR in 12FX)
  • MAIN MIX max output level +22 dBu XLR balanced (+16 dBu unbalanced)
  • MAIN MIX output impedance 120 Ω
  • GR1-2 in connectors (12FX only) 2 x TRS balanced 6,35mm (1/4”)
  • GR1-2 max output level (12FX only) +22 dBu XLR balanced (+16 dBu unbalanced)
  • GR1-2 output impedance (12FX only) 120 Ω
  • Headphones connector Unbalanced TRS 6,35mm (1/4”)
  • Headphones impedance 30 Ω
  • Control room connectors 2 x balanced TRS 6,35mm (1/4”)
  • Control room impedance 120 Ω
  • 2-TK connectors 2 x unbalanced RCA
  • 2-TK impedance 1 kΩ
