MiM
IN EAR MONITORING SYSTEMS
der gleichen Serie: MiM 20 MiM 30 MiM 20R MiM 30R
Zurück zum Anfang
MiM 20R
MiM 20R
MiM 20R
MiM 20R
MiM 20R

MiM 20R

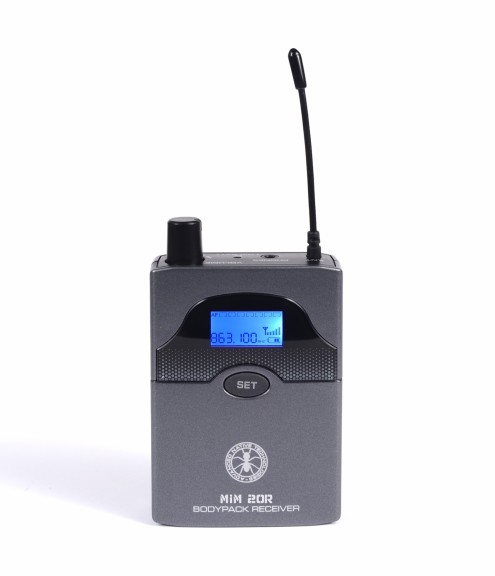

Beltpack receiver

MiM 20R: Bodypack Receiver zum MiM 20 In-Ear Monitor System.

LCD-Display mit gut leserlichen Anzeigen für:
Frequenz, Empfangsstärke und Batteriestatus.

64 mm x 90 mm x 23 mm; 95g

ANT Netzwerk
PREV
NEXT
  • Modulation FM stereo
  • Range of frequencies 823-832MHz + 863-865MHz
  • Channels available 96 (8 groups with 12 channels each)
  • Frequency response 50Hz – 15.000Hz (±3dB)
  • Audio outputs 3,5mm stereo mini-jack
  • Controls Volume, up, down, SET
  • Indicators Multi-function LCD, LOW battery, RF
  • Power supply 2 AA 1.5V batteries
  • Operating time > 12h
  • Dimensions (W x H x D) 64 x 90 x 23 mm
  • Weight 95 g
